model	Max. input power	Output frequency	input	Auxiliary function
SPG-10-I normal	10KW	80—250KHZ	380V 3P 50 or 60HZ standard   3×415V 3×440V 3×480V Can be ordered	1. “B” means  split type machine with connecting Cable length of 2 meters standard; up to 6 meters can be ordered. 2. “A” means machine with timer function, all models can increase timer function; 3. for example: SPG-20AB means 20KW machine with timer and separated transformer(split type)
SPG-10A-I with timer
SPG-20	20KW	80--250KHZ
SPG-20A with timer

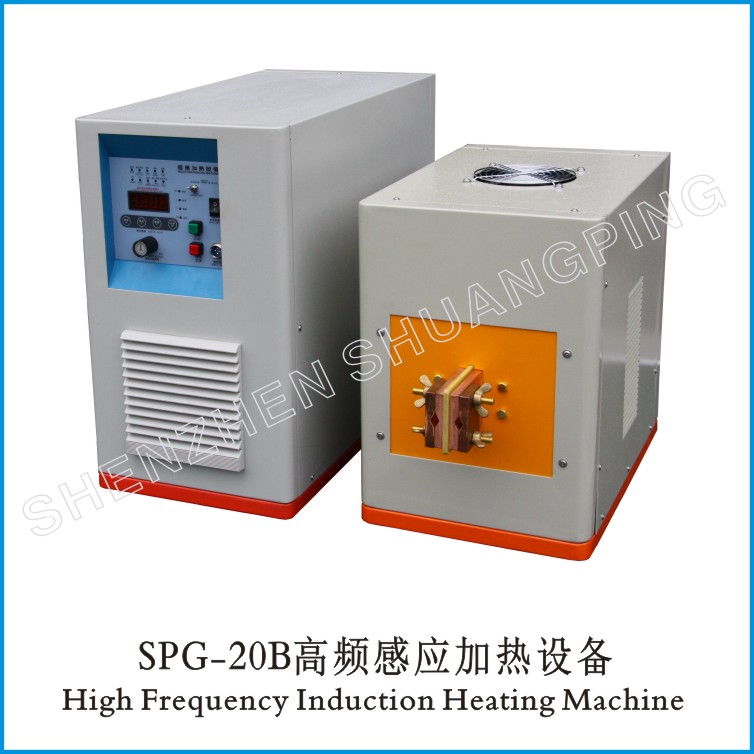

SPG-20B split type

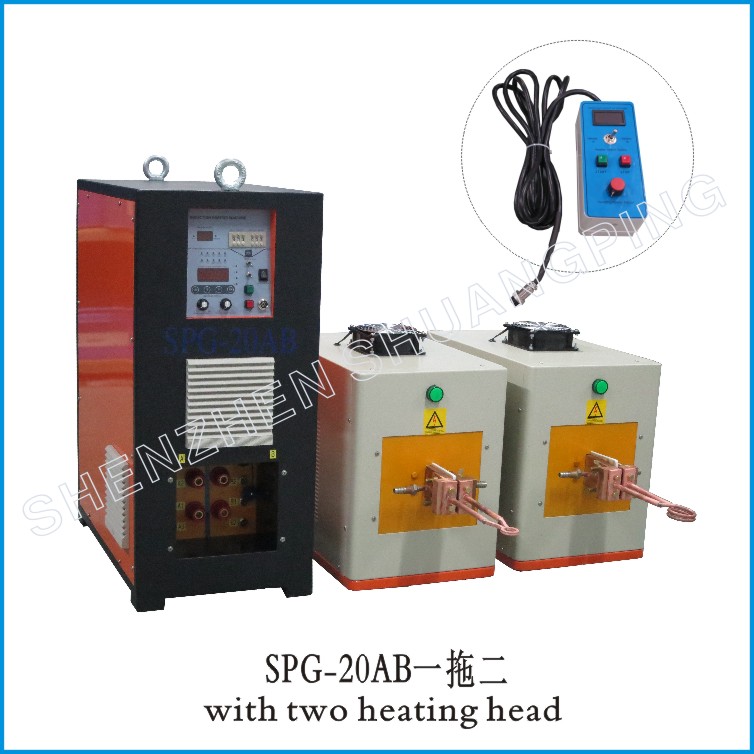

SPG-20AB split/timer

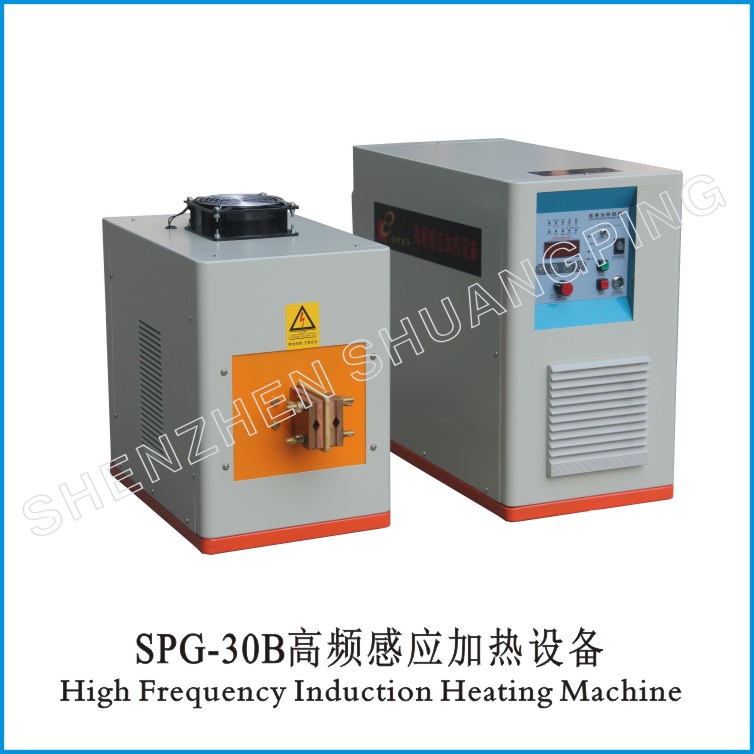

SPG-30B、SPG-30AB	30KW	80--200KHZ

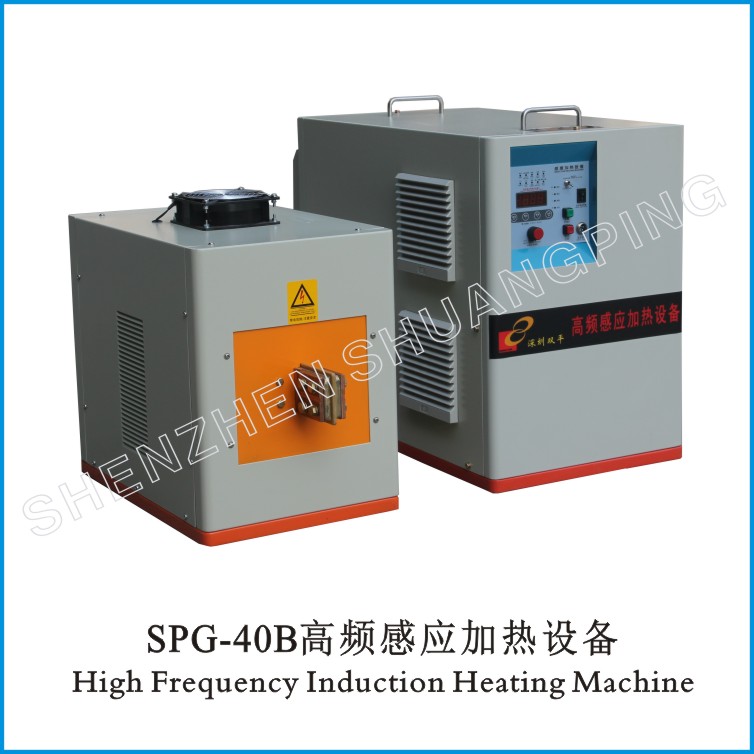

SPG-40B、SPG-40AB	40KW	80--200KHZ

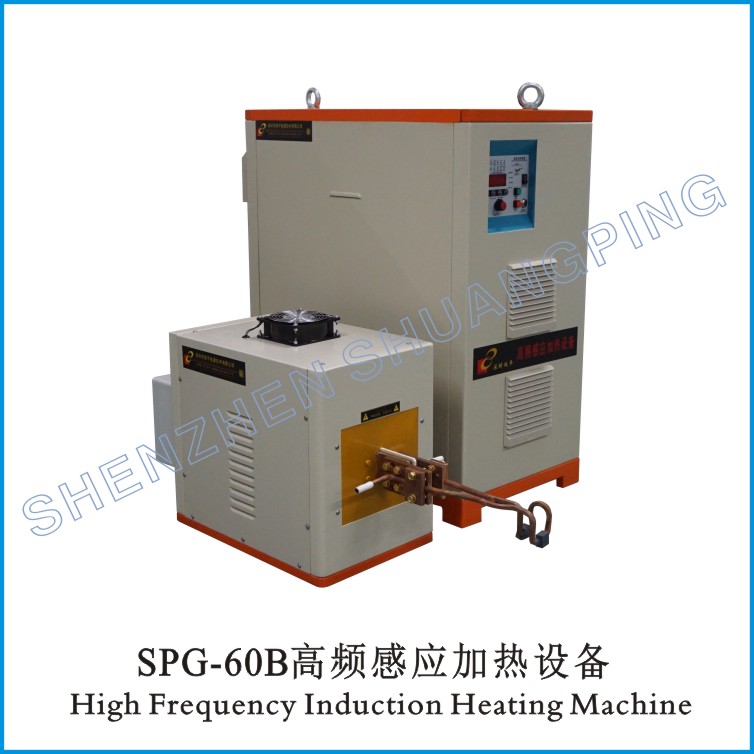

SPG-60B、SPG-60AB	60KW	80--180KHZ

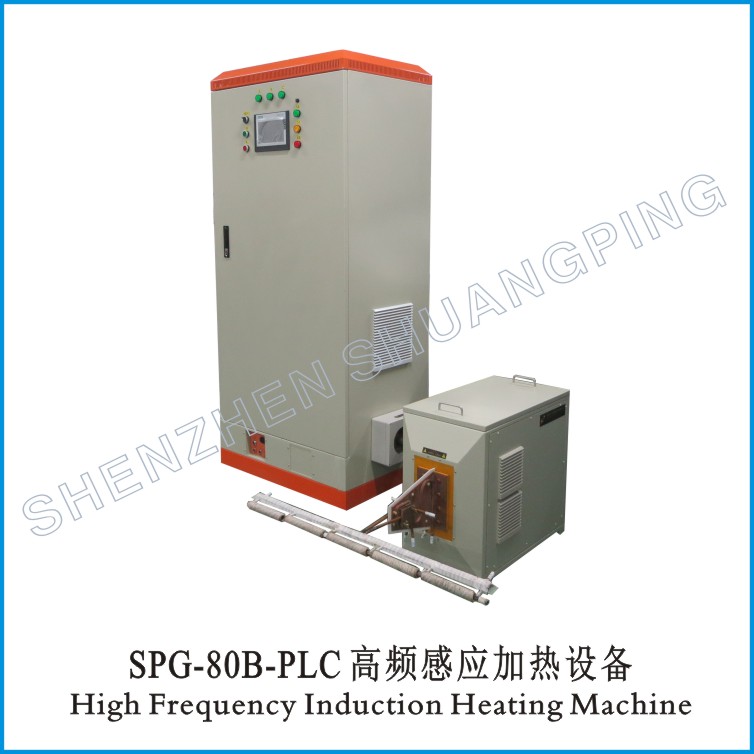

SPG-80B、SPG-80AB	80KW	80-150KHZ

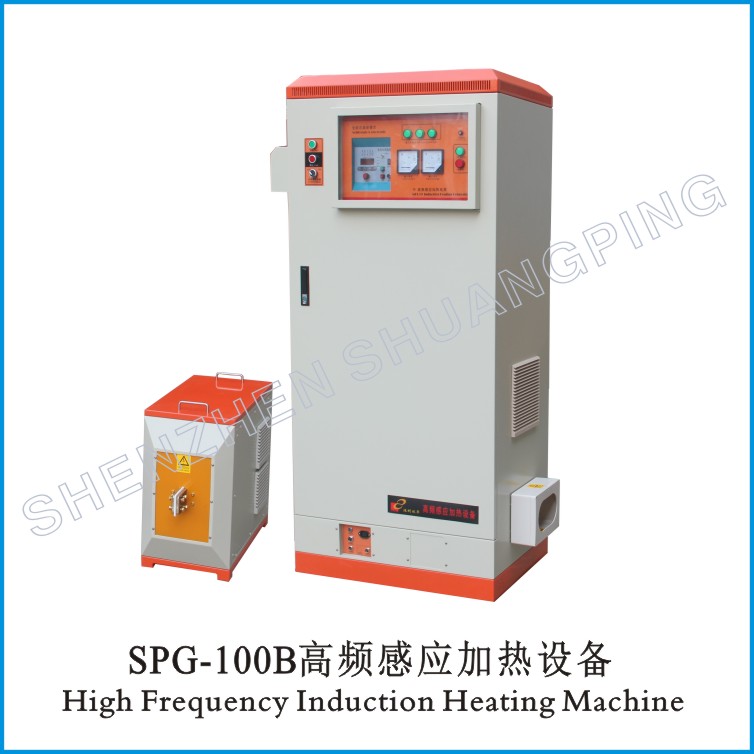

SPG-100B、SPG-100AB	100KW	80-150KHZ
SPG-120B、SPG-120AB	120KW	80-150KHZ

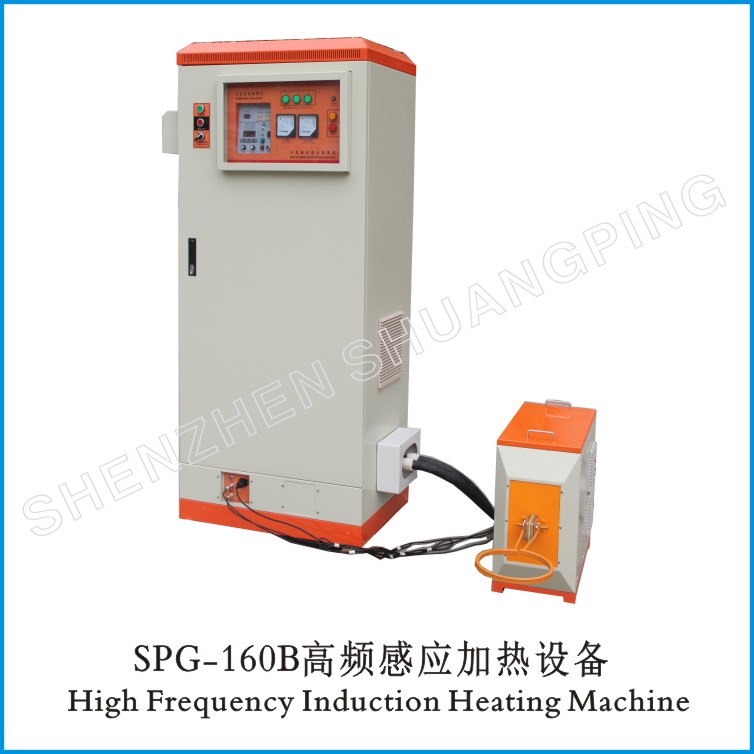

SPG-160B、SPG-160AB	160KW	80-130KHZ
SPG-200B、SPG-200AB	200KW	80-130KHZ
SPG-240B、SPG-240AB	240KW	80-120KHZ
SPG-300B、SPG-300AB	300KW	80-120KHZ
Larger power machines can also be ordered;

These series are suitable for many applications, for example,

 (1）Heat treatment of gear and shaft

（2）steel and stainless steel screw coating

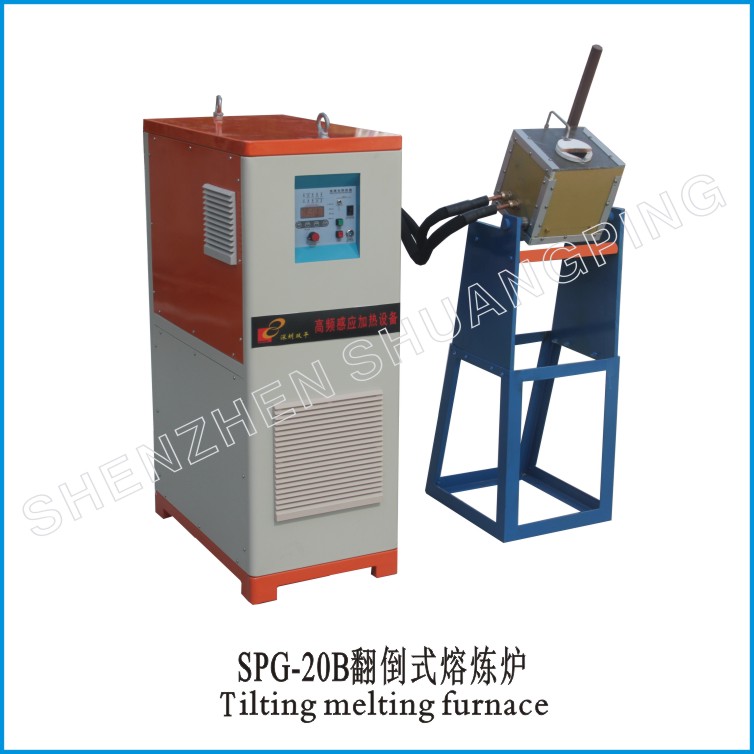

（3）floating melt for institute or college research

（4）tiny or powder material melting

（5）copper joint brazing and so on.
Due to the adopting of our third generation inverting control technology, SPG-10-I and SPG-20B series machines are acterized not only with high power and high frequency up to 250KHZ output, but also with high reliability on the condition of normal IGBT module.



Advantages and applications of models with Timer function:
   1. Heating power, retaining power, heating time, retaining time   can be preset and adjusted, this makes it possible to control the heating curve and heating time.
  2. It is suitable to use in the repeated heating or high speed heating of small parts;
  3. When using in brazing, with proper timing parameters, rapid heating and retaining can be achieved to keep the temperature while the brazing material is melted and then to let the brazing material spread smoothly to form good joint.

Advantages and applications of separated transformer:
   1. In these three series machines, the high frequency transformer is separated from the generator, with 2 meters connecting cable at least.
  2. It is suitable to use in the dirty or corrosive surroundings, the generator can be put in a clean space to increase the reliability.
  3. With the small size and light weight of the separated transformer, it is convenient to use in the production line and easily assembled inside the machinery or moved mechanism.



Working theory and structure
    In These series machines, series oscillating circuit is applied, through high frequency transformer, low voltage and high current power is output to go through the induction coil. The main oscillating structure is as follows:



    Inside These series machines, IGBT module and our third generation inverting control technology has been used, that is the soft and dual control and inverting technology. In this technology, output power and frequency can be controlled and adjusted separately, IGBT module and soft switching control technology are used in the high frequency switching circuit to control the output power.  In the inverting circuit, the IGBT and frequency tracing circuit is applied to achieve high speed and accurate soft switching control. The adoption of new technologies not only improves the quality and reliability of the machine，but also solve the technology problem on large power induction heating machine and makes it possible to work 100% duty cycle.
    Inside the These series machines, oscillating cap is connected to the secondary coil of the transformer, so the voltage on the primary coil of the transformer is low and problems caused by high voltage such as sparks and insulations are solved thoroughly to increase the reliability and quality of the machine. At the same time, the transformer is light and small sized with low energy consuming.
